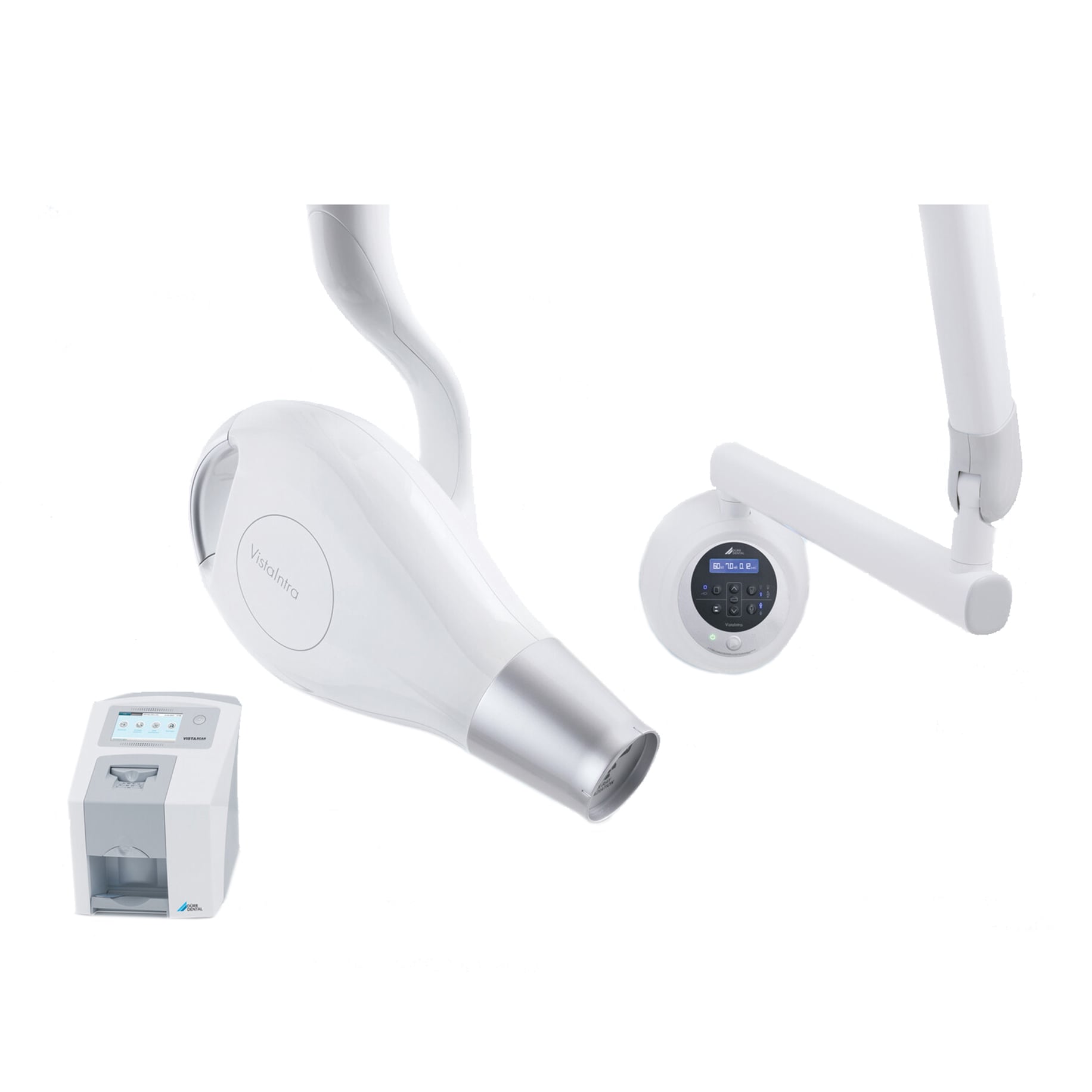

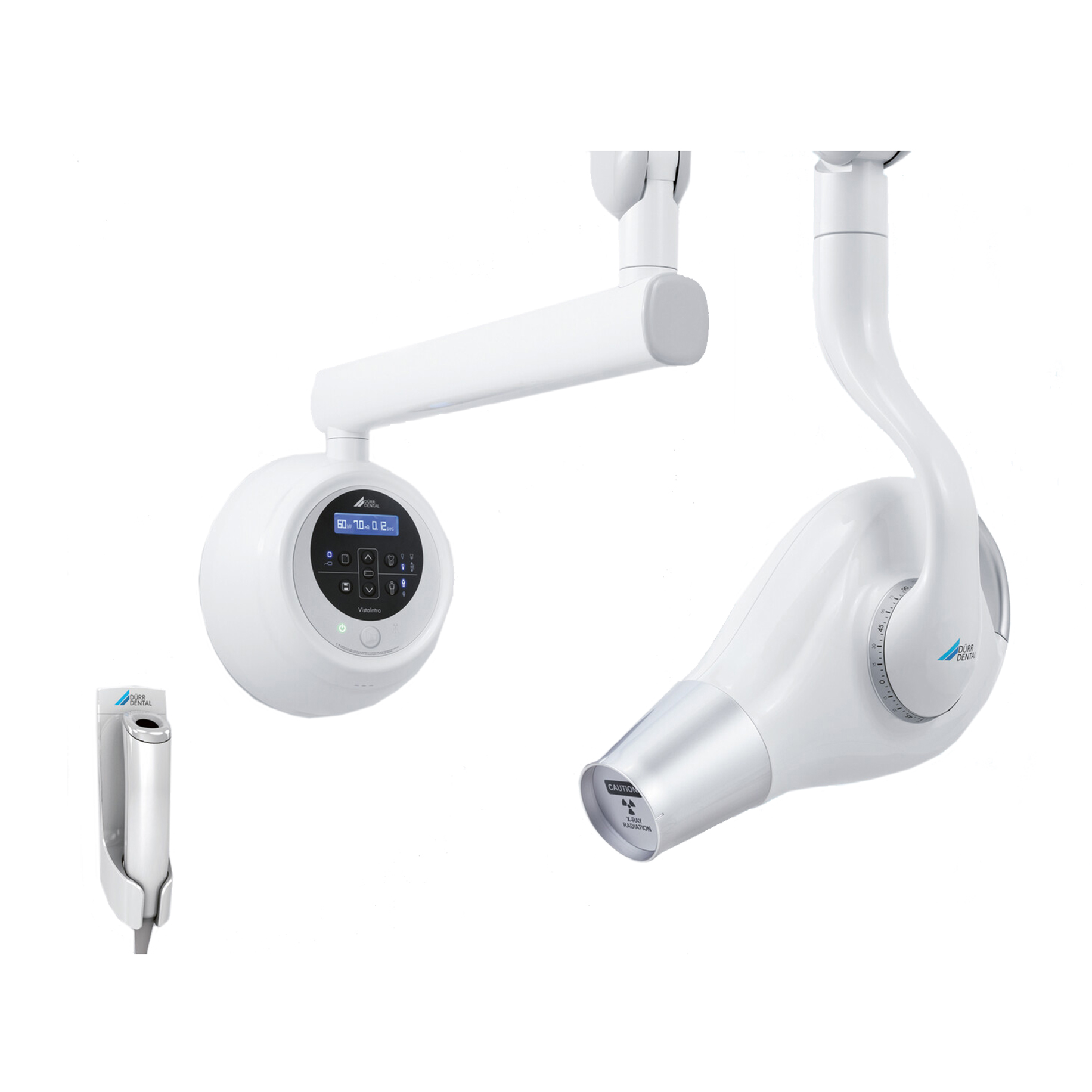

VistaIntra X-Ray With Medium Arm

VistaIntra X-Ray With Medium Arm - Fast, high-quality image results

The VistaIntra leaves the factory pre-programmed with the exact radiation dose for every tooth region required for DÜRR DENTAL image plates and sensors. It is ready for immediate use and delivers images with perfect exposure.

DC technology for minimised radiation dosage

• The modern DC technology of the VistaIntra ensures high repeat accuracy of the radiation dose and therefore reliably high image quality. It also reduces the patient dose by more than 25 % in comparison to conventional AC generators, thereby ensuring greater safety for your patients and employees.

Easy operation, highly ergonomic

• Thanks to the hand grip on the head of the X-ray unit, VistaIntra can be comfortably and precisely positioned. Selecting the required tooth area is also incredibly easy. The X-ray parameters can be finely adjusted where required; quick switching between two different radiation settings, e.g. for image plate and sensor, is also possible. Clear icons on the timer improve the workflow further still and reduce the risk of errors.

Continuous

• the constant radiation reduces the patient dose by more than 25% in comparison to conventional AC generators

Simple

• Simple operating concept with excellent user ergonomics

Precise

• Precisely oriented with right-angle/parallel techniques

Reliable

• Highly reliable, long service life of the X-ray tubes

Technical Data:-

• Tube voltage (kVp): 60 - 70
• Tube current (mA): 4 - 7
• Tube length (mm): 200 (300 Optional)
• Radiation field limiting (mm): Ø 60 / 30 x 40, (20 x 30 optional)
• Exposure time (seconds): 0,04 - 2
• Focal spot (mm): 0,4 (IEC 336)
• Min. total filtration (mm): Min. 2,0 Al
• Weight (kg): 18,5
• Max. working length (mm): 1810 / 1960 / 2260
• Input power (V, Hz): AC 100 - 240 10 %, 50/60
• Power consumption (W): 500
• Height (mm): 1730
