The Hygea D3ntal has been developed utilising design features from the QS series in addition to new features specifically for dental Local Decontamination Units (LDUs) it is fully compliant to HTM01-05 and ISO standards.

The size of the Hygea D3ntal has been designed with LDU's of all sizes in mind, it is compact but does not compromise efficiency, leaving more room in a busy decontamination space to work with precision and ease. The unit boasts up to date WiFi direct (with optional SD writer) for logging cleaning cycles and automatically storing these straight to a computer, thus freeing staff time.

Ease Of Use:-

The basket carrier has been redesigned to hold a variety of baskets and cassettes, not only from Ultrawave but many other manufacturers. This means staff can save more time no longer having to transfer instruments between holders for different LDU machines. Each cassette can hold up to ten standard instruments and each Hygea D3ntal holds six cassettes. The machine will also provide the user with a visual alert that reminds them when to change the fluid.

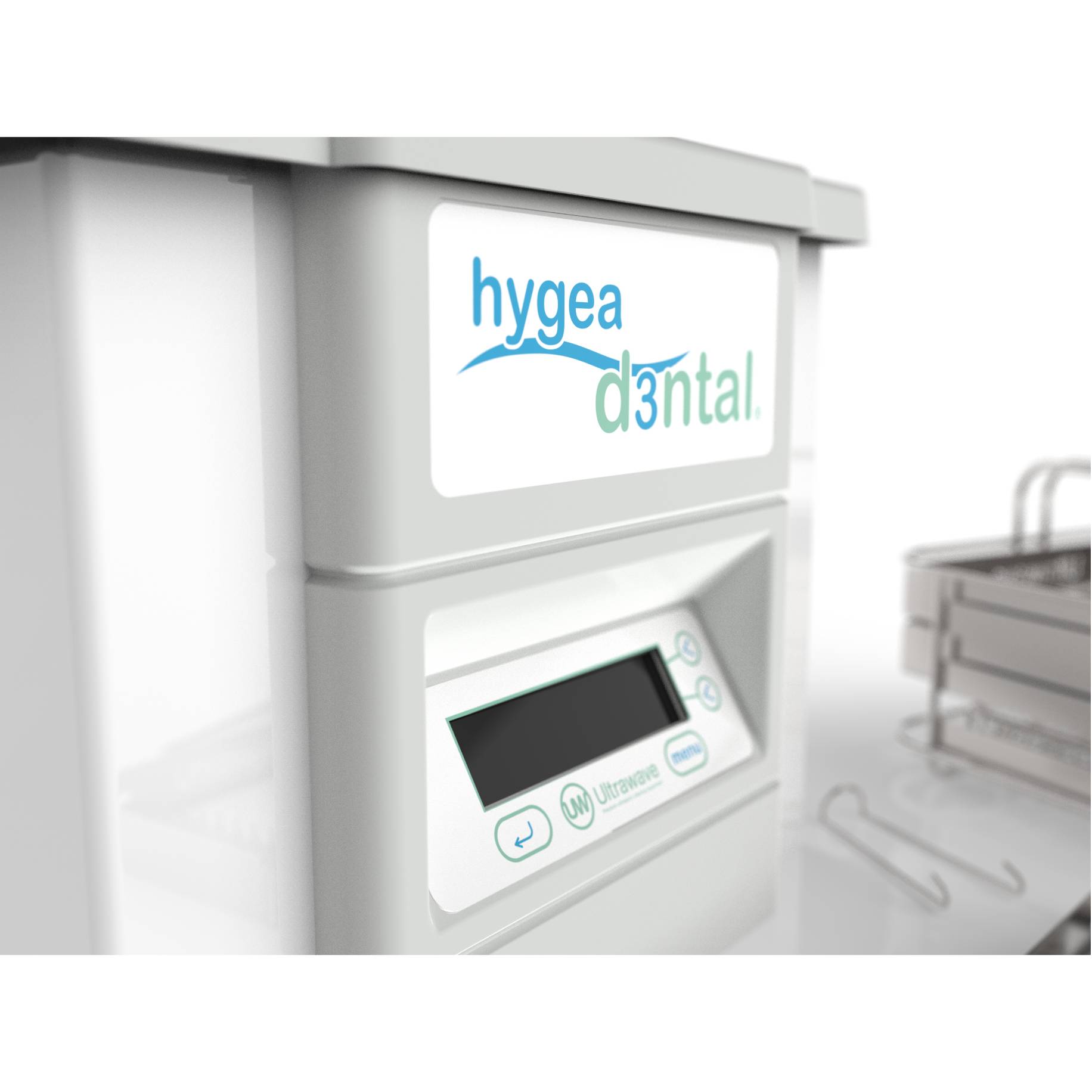

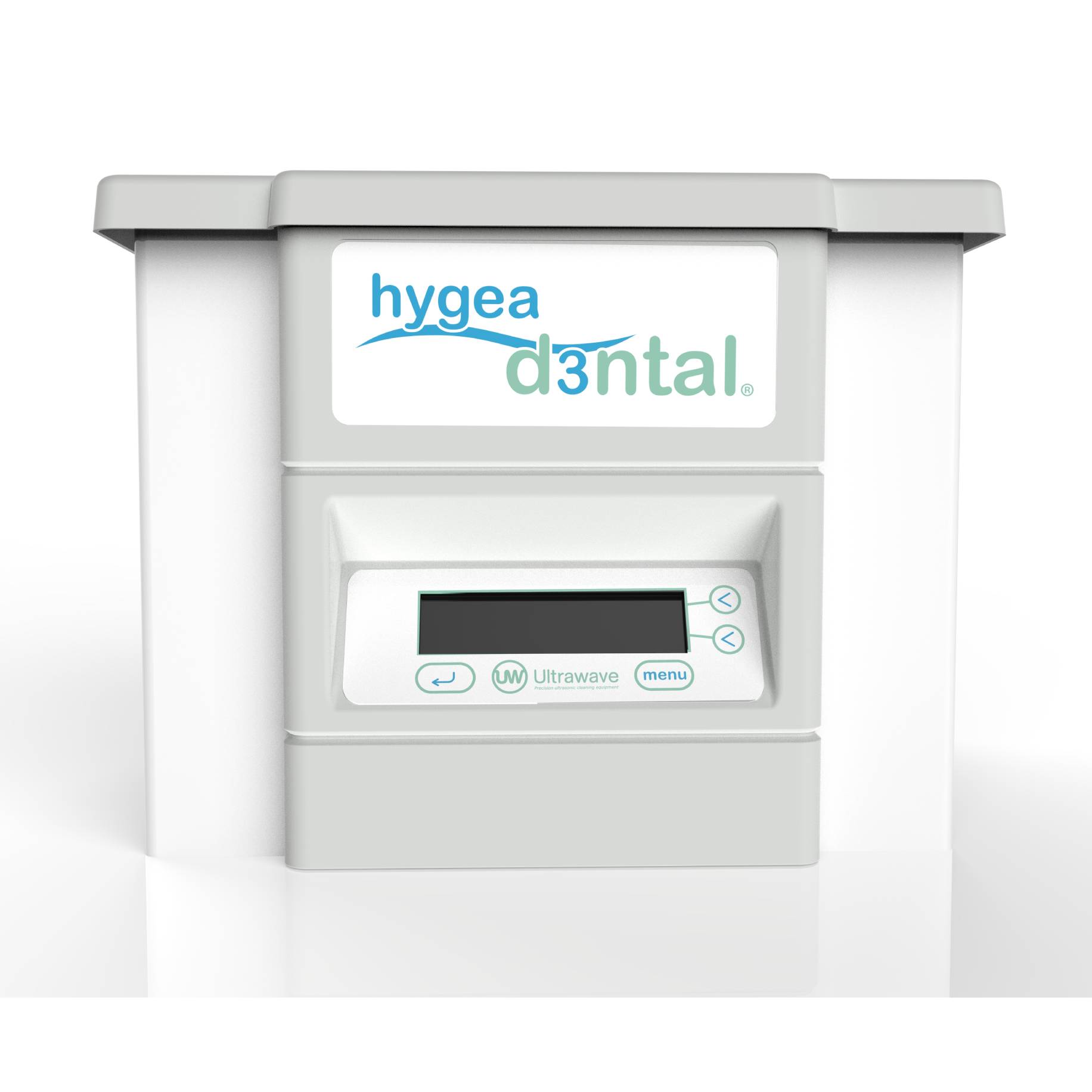

The menu driven control panel allows simple adjustment of cycle time (0 to 99 minutes), temperature (ambient to 50°C), ultrasonic power and frequency adjustment for precise and accurate processing.

Compliance With HTM01-05-

• Pre-sterilisation cleaning of medical instruments
• Easy removal of contaminants in hard to reach places
• Magnetic lid with cycle interrupt

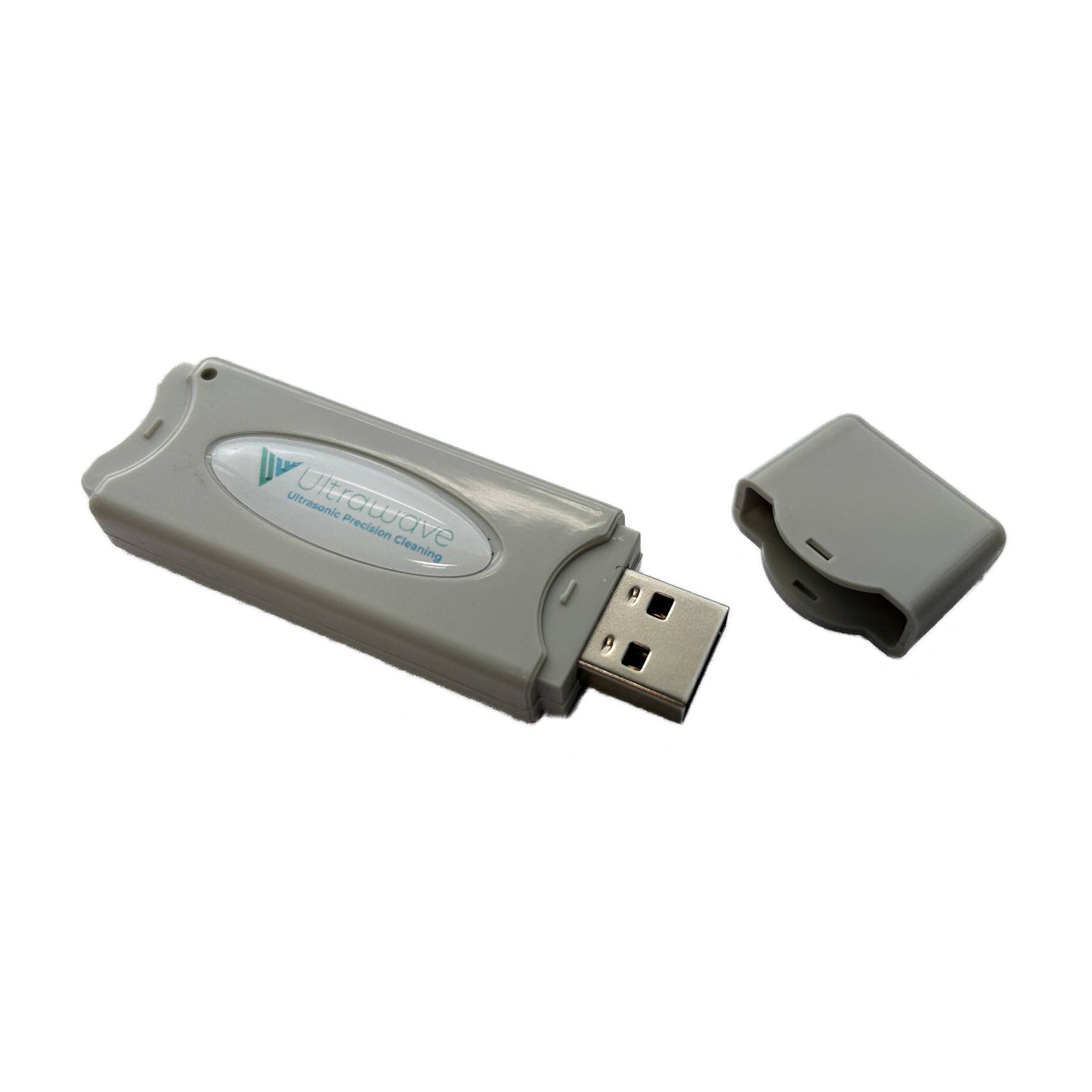

• Cycle traceability via wifi direct or SD card
• Water change reminder

Features and Benefits -

• Large capacity 10 litre tank
• Basket carrier with trays
• Installation support
• Three-year warranty*
• Annual on-site validation service
• Troubleshooting support
• Overall Dimensions - 345 x 285 x 265 (WxDxH)
• Tank Dimensions - 295 x 245 x 150 (WxDxH)
• Timer 0-99 minutes

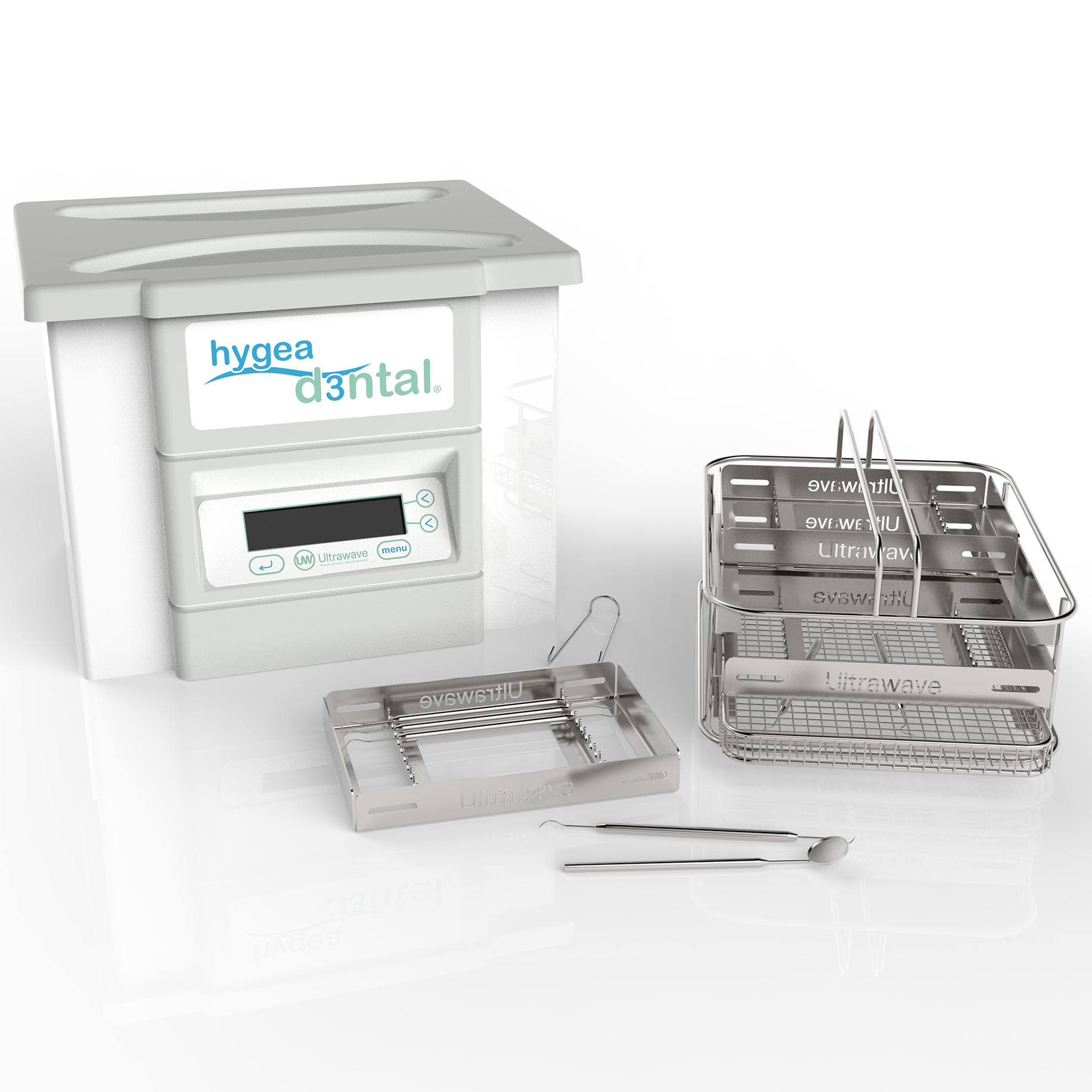

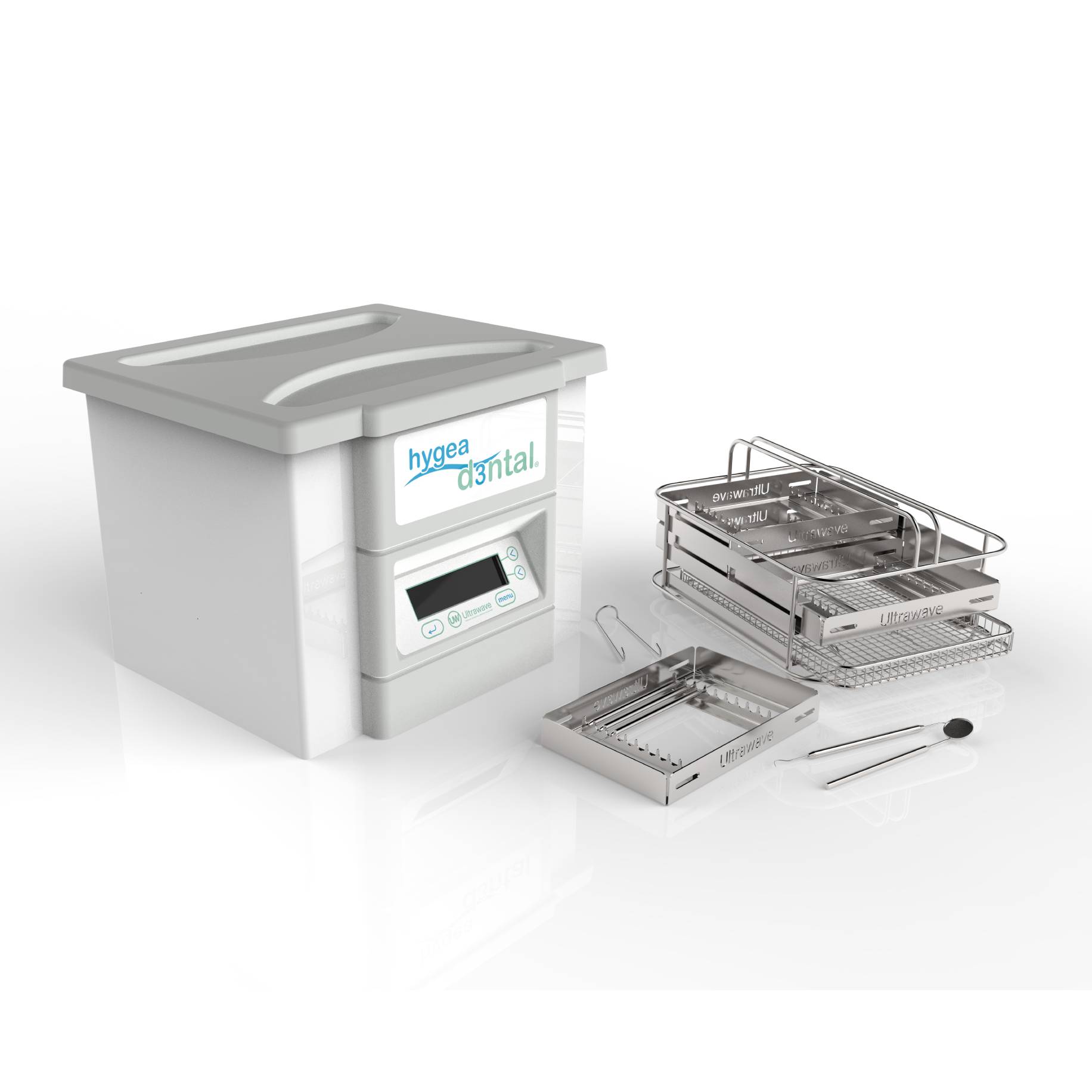

Please note cassette and hand instruments shown in image are not included

• The Hygea D3ntal comes with a 3 year warranty but it does not include annual onsite validation service. The unit is validated for the first year and after this the validation is a paid service. Validations must be performed yearly to be compliant with HTM01-05. For the warranty to be valid for 3 years, practices will need to complete these validations with Ultrawave.

For more information or to place an order please email equipmentsales@ddgroup.com or Tel: 0800 585 586
